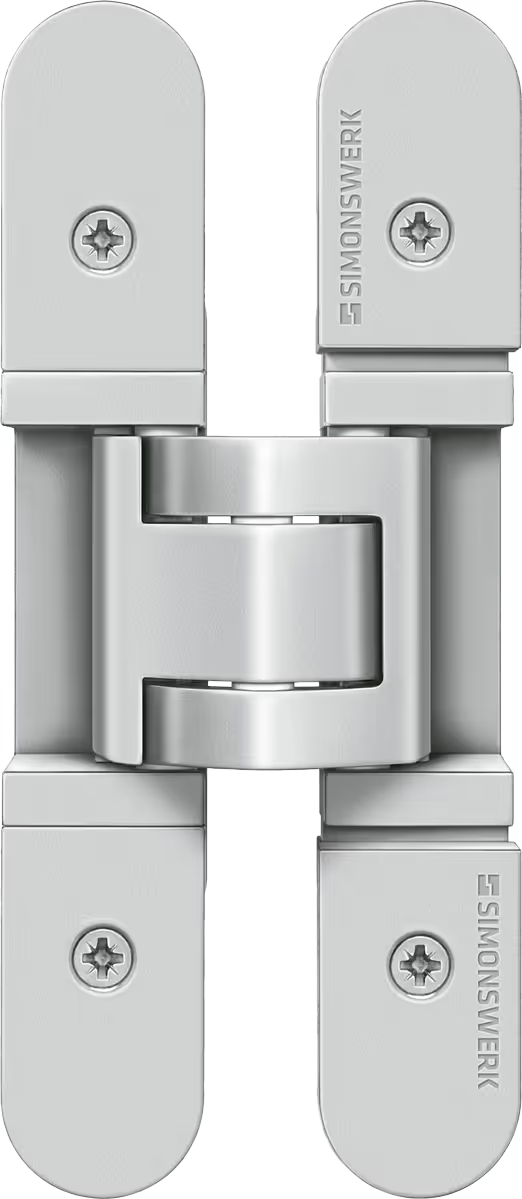

TE 526 3D
Manufactured of solid stainless steel for flush commercial doors with a minimum door panel thickness of 34 mm (1-3/8“), the TE 526 3D has a load capacity up to 120 kg (264 lbs.).
Specifications
- Capacity:w/2 installed: 264 lbs [120kg]
- Height:6.1" [155mm]
- Width:Door & Frame: ~1" [26mm]
- Depth:Door: 1.38" / Frame: 1.44" [36/33mm]
- Min. Door Thickness:1-3/8" [34mm]
- Router Bit Diameter:3/4"
Features
Superior Corrosion Resistance
For wood, casing, steel and aluminum frames
Opening Throw 90°+180° (download .zip)
Opening Throw from 0°-5° (download .zip)
UL Listed: 3-Hours
Continuously Adjustable in 3-Dimensions
- Side: + /– 3 mm
- Height : + /– 3 mm
- Depth : + /– 1mm
030 Polished Brass
047 Satin Brass
070 Traffic White (RAL 9016)
107 Matte Deep Black (RAL 9016)
124 Satin Chrome Look (F1)
125 Satin Nickel Look (F2)
146 Satin Chrome
156 Rustic Umber
168 Bronze Metallic
174 Bronze Finish
175 Bronze Finish Light
176 Bronze Finish Dark
126 Stainless Steel Look (SSL)
Installation Video
Standard Installation Resources
